Digital Wireless System for Electric Guitar
Polska wersja tego dokumentu
Please note, that the system described below is a FREE DESIGN provided WITHOUT ANY WARRANTY.
If you build and use it, you do it on your own risk! Please note, that this is a RF transmission
system, so you should be sure, that its use does not violate your local regulations!
The described system has been designed to match the following requirements:
- To transmit signal to the virtual amplifier/sound processor without the inconvenient cable
- To allow selection of settings in the virtual amplifier/sound processor using controls in the transmitter
near to the guitar
- To allow digital recording of the guitar sound
Of course there are different professional systems offering the above functions, but
their price is rather too high for an amateur guitarist.
On the other hand my system does not offer parameters like professional systems, but it
may be built at reasonable price. The essential components include:
- In the transmitter
- Analog to digital converter CS5343 or CS5344 (you can adjust
sources to use another I2S or SPI ADC with sufficient throughput and resolution).
With CS5343/4 no input amplifier is needed for typical guitar!
- Microcontroller ATmega88 working with 18,432MHz clock
- Radio transmission module RFM70
- In the receiver
- Microcontroller ATmega32u4 working with 16MHz clock
- Radio transmission module RFM70
Currently the system offers the following parameters:
- Digital transmission of sound sampled with 24 kHz frequency and with 20-bit resolution
- The receiver is recognized by the PC running the virtual amplifier/sound processor
as an USB MIDI device with USB Audio interface providing PCM sound in S24_3LE format
(24 bits, 4 least significant bits are always zeroes) with sampling frequency 24 kHz
(it is possible to compile the receiver's firmware in Windows compatibility mode, so it emulates
the 48 kHz sampling frequency).
- Settings of 7 controls (3 potentiometers and 4 switches) are transmitted as USB MIDI commands,
so you can easily select settings in your virtual amplifier/sound processor (commands sent by
controlls may be modified by the software)
Current schematic diagram is available as the KiCad project,
or as separate PDF files:
transmitter,
controllers' block,
daughterboard with CS5343/CS5344 converter,
receiver.
Current sources of the firmware are available as archive
and (with the history of last changes)
in the github repository,
while a few earlier versions were also published on the
alt.sources
Usenet group.
In the current version of the system the transmitter is mounted on dedicated PCB (full design
is available in the KiCad project), placed in the
Z32 enclosure.
To place potentiometers behind the batteries, I had to
select small potentiometers, and additionally to mill slightly the enclosure.

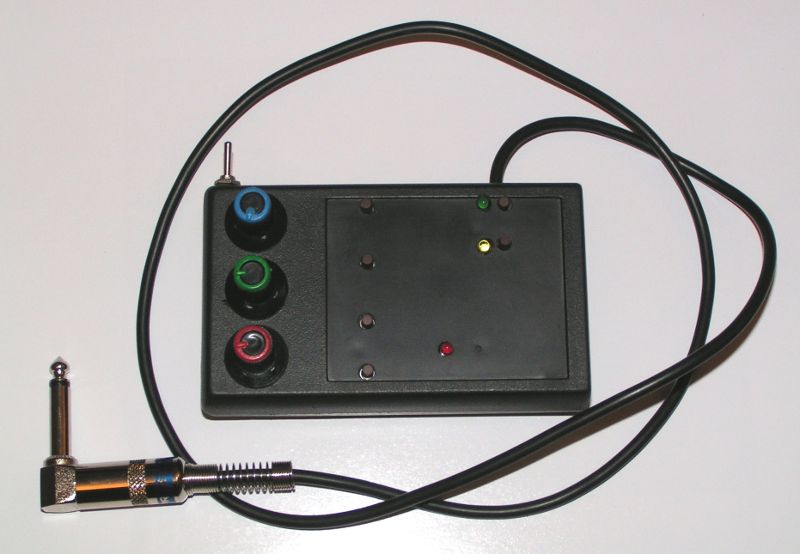

Overall view of the mounted transmitter is shown below:

Inside view of the transmitter

Inside view of the transmitter with batteries taken out and potentiometers visible.

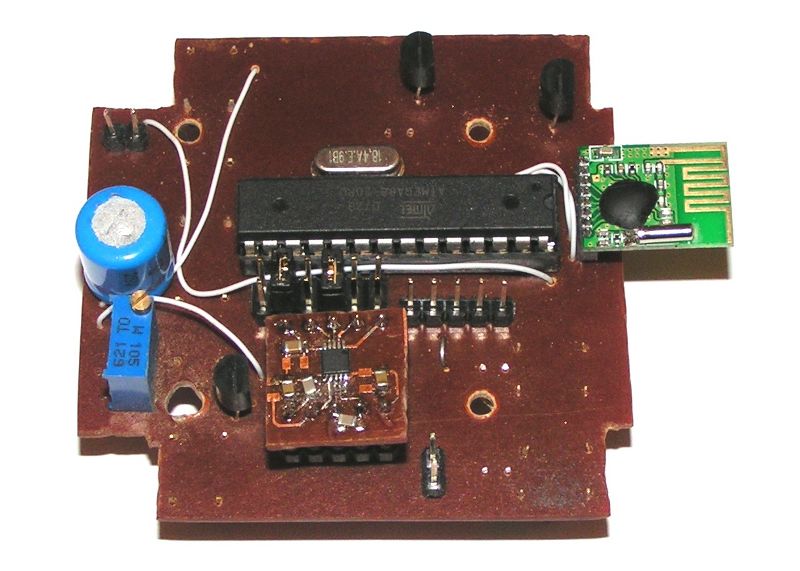

The mounted transmitter PCB is shown in next two pictures:


The mounted receiver PCB is shown in next two pictures:


Transmitter's power supply
To assure efficient power supply, two NiMH rechargable batteries (may be replaced
with alkaline batteries) are used, working with
the step-up DC-DC converter based on MCP1640 chip.
Such solution seems to be risky in a system designed to handle acoustic signals
with high dynamic range. Therefore the boosted voltage is further stabilized
with linear voltage regulators.
It is also essential to use good quality decoupling capacitors.
To switch on and off the transmitter, you should use the switch (not
shown in the schematic diagram) connected in series with the batteries.
Software working with the system
The DWGS system is dedicated for use with the digital
virtual amplifier/sound processor. In my case it was the guitarix
or rakarrack working with the jack audio system under Linux.
For recording and postprocessing I use the ardour.
With receiver's firmaware compiled in a standard way, the system is recognized
as audio device providing monophonic sound in 24 bits(effectively 20 bits)
sample swith 24 kHz sampling frequency. For processing of sound from different sources I usually
use the jack system working with sampling frequency of 48 kHz.
Necessary sampling frequency conversion and synchronization is assured by the
"alsa_in" program
(called as:$ alsa_in -d hw:2,0,0 -r 24000 -c 1 -n 2
).
To allow operation with computers working under control of MS Windows,
I have added the mode which emulates sampling frequency of 48 kHz.
To activate it, you need to uncomment the line
#define WGS_EMUL_48KHZ
in the customize.h
file.
Even though the sampling frequency is the same in the DWGS and in jack, you should still use
alsa_in program to assure correction of possible small differences of sampling frequency and
to keep sound synchronized.
In this case the alsa_in program should be called as
$ alsa_in -d hw:2,0,0 -r 48000 -c 1 -n 2
.
Why the DWGS system uses 24 kHz sampling frequency?
In fact the CS5343/CS5344 ADC works with sampling frequency of 48kHz, and during the first tests
of the system I was able to achieve transmission of the true 24bit/48kHz digital sound.
Unfortunately, due to the limited throughput of the RFM70 module, to assure such high
transmission rate I had to switch off the "auto acknowledge/retransmission" functionality,
which increases reliability of the transfer. It resulted in loss of quality due to
dropped packets, so the final sound quality was worse than with current 20bit/24kHz transmission.
If you have a module similar to RFM70 but offering higher throughput, you can
relatively easy modify the firmware to achieve true 24bit/48kHz transmission.
Modification of MIDI commands sent by controlls
To provide high flexibility of the DWGS system, the user may define what MIDI commands
should be sent when the button is switched or released and when the potentiometer's shaft is
turned. The programming is realized like in my previous design
"MIDI expression pedal with programmable footswitches".
Initially when a button is pressed the DWGS sends the MIDI "Program Change" command
with program number between 1 and 4. Release of the button initially doesn't generate
any MIDI command.
Potentiometer's settings are initially sent as MIDI "Control/Mode Change" commands with
control number between 80 and 82.
To change above settings you should send special USB control messages to the receiver (I use
a simple program written in Python with "pyusb" library to achieve that).
To modify command sent when setting of a potentiometer is changed,
you should send the control message of following form (Python syntax, using pyusb functions):
dev.ctrl_transfer(0x40,0xbN,0xB1B2,0xB3B4)
where N is the potentiometer's number (between 0 and 2), and B1, B2 i B3 define the first three bytes
of the generated MIDI command, while B4 is replaced with the current setting of the potentiometer
(when B4=0) or "inversed" setting of the potentiometer (when B4 is not equal to 0).
To modify command sent after pressing of the N-th button,
you shoud send the control message of following form (Python syntax, using pyusb functions):
dev.ctrl_transfer(0x40,0x8N,0xB1B2,0xB3B4)
where N is the number of the switcho (between 0 and 3), and bytes B1, B2, B3 and B4
are the consecutive bytes of the generated MIDI command. The only exception is the fact,
that if B1 is equal to 0, no command is generated at all.
To modify command sent after release of the N-th button,
you shoud send the control message of following form (Python syntax, using pyusb functions):
dev.ctrl_transfer(0x40,0xcN,0xB1B2,0xB3B4)
where N is the number of the switcho (between 0 and 3), and bytes B1, B2, B3 and B4
are the consecutive bytes of the generated MIDI command. The only exception is the fact,
that if B1 is equal to 0, no command is generated at all.
Example of the program used to reprogram the DWGS system is available here.
If you define the appropriate udev rules file in your Linux system, you can achieve automatic
configuration of the system, when it gets connected to the PC, or when the PC is switched on.
For example in my system I have added the following udev rule:
ACTION=="add", SUBSYSTEM=="usb",
ATTRS{product}=="WZab Digital Wireless Guitar System 1",
ATTRS{bcdDevice}=="0001", MODE="660", OWNER="root", GROUP= "audio",
RUN+="/usr/local/midi/setup_dwgs_v1.py"
If you want to modify the setup program according to your needs, you should probably read the
following documents:
USB MIDI class definition
and table of MIDI messages.
Change of RF channel
Transmission of the sound and control data via DWGS may be disturbed, e.g. by Wi-Fi networks.
Therefore the transmitter is equipped with two buttons allowing you to increase or decrease
the number of the used channel by 8.
To stay inside the unlicensed ISM band, the DWGS uses the 83 lower channels offered
by RFM70 module. As 8 and and 43 are relatively prime numbers, multiple pressing of those
buttons allows you to select any channel. On the other hand, change in increments/decrements
of 8 channels allows you to quickly go sufficiently far away from the frequency occupied by Wi-Fi network.
Previous version of design and firmware
The previous version of the system is available as the KiCad project
(schematic diagrams and TX PCB)
and as archived sources of the firmware.
